Phi Accrual Failure Detection in Distributed Computing

Failure detection is one of the most fundamental building blocks of distributed computing for ensuring fault tolerance. It mainly helps to efficiently coordinate tasks/jobs between multiple nodes by identifying malfunctioning or crashed nodes in the system. Failure detection also plays a crucial role in distributed agreement problems such as Consensus to avoid the indeterministic nature of the problem (Consensus cannot be solved deterministically in an asynchronous system if even a single process crashes).

There have been many failure detection algorithms and mechanisms since the beginning of distributed computing. Still, many failed to provide failure detection to meet their specific application requirements reliably. The main reason why those conventional failure detectors make it difficult to meet the requirements of several distributed applications running simultaneously is their Boolean-natured answers of node failures. Many simultaneously running distributed applications with different quality of service requirements need failure detection algorithms that can be tuned to meet their own needs without interfering with each other.

Therefore, the failure detector we are going to talk about today helps us to completely decouple the application requirements from issues related to the underlying system.

So, before we go to explain phi accrual failure detectors, let’s talk about what accrual failure detectors are and how they differ from conventional failure detectors.

Accrual Failure Detectors

Failure detectors are traditionally based on a Boolean interaction model wherein processes can only either trust or suspect the process they are monitoring. In contrast, accrual failure detectors output a value on a continuous scale rather than information in a Boolean perspective.

This outputted value primarily indicates the level of confidence that a monitored process has crashed. If the process has indeed crashed, this value will increase over time and ultimately approach infinity. It is up to the application processes to establish an appropriate suspicion threshold based on their specific quality of service requirements. A lower threshold is more susceptible to false conclusions but allows for quicker detection of crashed processes. Conversely, a higher threshold reduces the likelihood of mistakes but takes longer to identify actual process crashes.

Let’s understand the advantages of having an accrual failure detector rather than conventional failure detectors using an example.

Consider a distributed application with a master-slave architecture, where a master process coordinates several slave processes that serve as workers. The master maintains a list of jobs that need to be completed by these worker processes. As long as there are jobs on the list, the master assigns tasks to idle worker processes and collects their results once the tasks are finished.

Now, assume that one of the workers' processes crashes during the execution of an assigned job. For simplicity, we will consider that the master process never crashes. If the master cannot identify the crashed process, the system may block indefinitely, mistakenly assuming that the crashed process is still working on the assigned task. However, if the master can detect the crashed process, it can take appropriate actions to resolve the issue.

Next, let’s explore the steps a master can take using an accrual failure detector instead of a conventional failure detector.

When a suspicious level reaches some low threshold, the master simply flags the worker process and temporarily stops sending new jobs to that process. Then reaching some moderate suspicious level, the master cancels all unfinished computations that were running on that process and resubmits them to some other worker processes. Finally, when reaching a high threshold level, the confidence that the worker process crashed is very high, so the master removes that worker process from the list of available workers and releases all corresponding resources. Achieving this kind of behavior is quite challenging with conventional failure detectors.

Before we explore accrual failure detectors, let’s first understand how conventional failure detector's function and why they often fail to provide reliable failure detection mechanisms in distributed applications.

How Conventional Failure Detectors Work

Many conventional failure detectors rely on a heartbeat mechanism. We must assume that processes have access to a local physical clock, which enables them to measure time (clocks may or may not be synchronized).

The detector operates by periodically sending a heartbeat message from the monitored process to indicate its liveness. This message can be in the form of any kind of UDP datagram, although TCP-based messages may also be used; UDP is preferred due to its lower overhead.

To illustrate how these heartbeat detector's function, let’s consider two example processes: p and q. Process p is the monitored process that sends heartbeat messages, while process q is the monitoring process. Within this setup, there is a heartbeat interval denoted as delta_i, which is the period at which process p sends its heartbeat messages.

Process q will suspect that process p is unresponsive if it fails to receive a heartbeat message within a timeframe defined by a timeout period, delta_timeout, where delta_timeout is greater than or equal to delta_i. Additionally, it is crucial to consider the average network transmission delay, delta_delay, in this context.

In a typical implementation of heartbeat-based failure detection protocols, the timeout value is constant. When process q receives a heartbeat from process p, it will wait for the next heartbeat for a maximum of delta_timeout units of time. If it does not receive a new heartbeat within this timeframe, process q starts to suspect that process p has failed.

When selecting a value for delta_timeout, there are important trade-offs to consider. A shorter timeout value allows for quicker detection of crashes, but it raises the likelihood of mistakenly identifying benign events as suspicious. On the other hand, a longer timeout reduces the chances of false suspicions, yet it delays the detection of actual crashes.

A significant drawback of using a constant timeout to identify faulty processes is that it fails to account for unreliable network conditions. If the network experiences issues, the interval between heartbeat messages may increase due to packet loss. This can lead to the receiving side exceeding the timeout and mistakenly suspecting that the process is faulty, even though the underlying problem lies with the network. As a result, conventional heartbeat-based failure detectors do not effectively adapt to changing network conditions and instead rely on a static model to determine whether processes are faulty or functioning correctly.

To effectively identify faulty and correct processes, we need failure detectors that can adapt to their network environment. These detectors should dynamically adjust their parameters based on the changing conditions of the network. Such failure detectors are known as adaptive failure detectors, as the name implies.

Adaptive Failure Detectors

The goal of adaptive failure detectors is to adapt to dynamic network conditions. Most adaptive failure detectors use the heartbeat strategy as their basic mechanism but with dynamically modifying timeout according to network conditions.

There are several adaptive failure detectors proposed by several people including Chen-FD and Bertier-FD.

1. Chen-FD: based on probabilistic analysis of network traffic. The protocol uses arrival times samples in the recent past to compute an estimation of the arrival of the next heartbeat. The timeout is set according to the estimation and a constant safety margin added. The estimation of the next heartbeat arrival time is recomputed after each new heartbeat arrival.
2. Bertier-FD: based on same approach mentioned above, but using a different estimation function. The estimation combines Chen’s estimation with a dynamic estimation based on Jacobson’s estimation of the round-trip time. The resulting failure detector resulted in more wrong suspicions than Chen’s estimation according to experiments.

The accrual failure detector is a type of adaptive failure detector that provides stronger adaptiveness than described above.

Architecture of Accrual Failure Detectors

The concept behind accrual failure detection is simple. Rather than outputting Boolean information, accrual failure detectors output suspicion levels on a continuous scale. The higher the value, the higher the chance of the monitored process crashing.

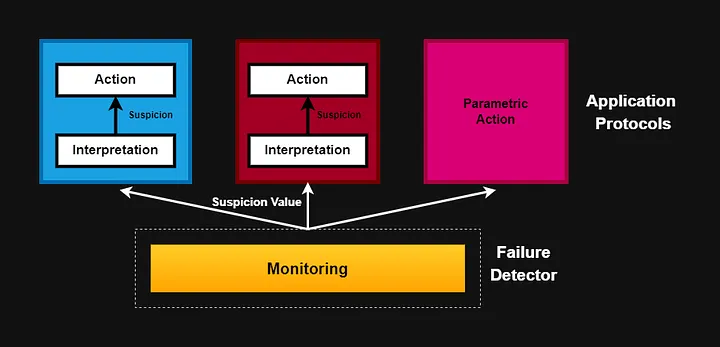

Conceptually, the design of accrual failure detectors on the receiving side can be decomposed into three main parts as follows:

1. Monitoring: the failure detector gathers information from the other processes, usually through the network. Information can be heartbeat arrivals or query response delays.
2. Interpretation: Monitoring information is used and interpreted.
3. Action: actions are executed as a response to triggered suspicions. This is normally done within the applications.

The main difference between conventional failure detectors and accrual failure detectors is which component of the system does what part of failure detection.

In traditional timeout-based implementations of failure detectors, the monitoring and interpretation functions are combined within the failure detector itself, which outputs a simple Boolean value (True or False). The failure of a process is interpreted directly based on the elapsed timeout value. As a result, there is a high degree of coupling between the monitoring information and the failure detector’s interpretation. This design limits the application’s ability to interpret the results, as it can only act on the output provided by the failure detector. Consequently, achieving varying quality of service requirements across different applications becomes challenging, as the application can only respond based on the failure detector’s response.

Accrual failure detectors, in contrast, separate the monitoring process from the interpretation of the data. In this approach, the responsibility for interpreting the information lies with the application, while the failure detector focuses solely on monitoring the processes and gathering relevant data. The failure detector produces an output based on the collected monitoring information, which the application then uses for interpretation.

By establishing suitable threshold levels for the output value, the application can take necessary actions to meet its quality requirements. For instance, the master process can utilize this output value to allocate the most urgent tasks exclusively to worker processes with lower suspicious values.

The value output by the failure detector has certain properties to be followed to be mathematically accurate. The first two properties specify what the output should be if monitored process p crashes, whereas the remaining two properties specify what the output should be if p is correct.

1. Asymptotic property: If process p is faulty, the suspicious level tends to infinity as time goes to infinity.
2. Eventual monotony: The process p is faulty, there is a time after the suspicious level is monotonic increasing.
3. Upper bound: The process p is correct if and only if the suspicious level has an upper bound over an infinite execution.
4. Reset: If process p is correct, then for anytime t0, suspicious level is equal to zero for some time t ≥ t0.

Accrual failure detectors merely define an abstraction, and therefore there can be many implementations of the accrual failure detector. The Phi Accrual Failure Detector is one of the practical implementations proposed by Naohiro Hayashibara in 2004 in this paper.

Implementation of the Phi Accrual Failure Detector

In this implementation, suspicious value is given by a value called Phi. The basic idea of the phi failure detector is to express the value of phi on a scale that is dynamically adjusted to reflect current network conditions.

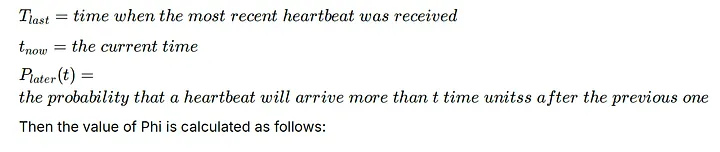

There are three terms to be identified first:

Then the value of Phi is calculated as follows:

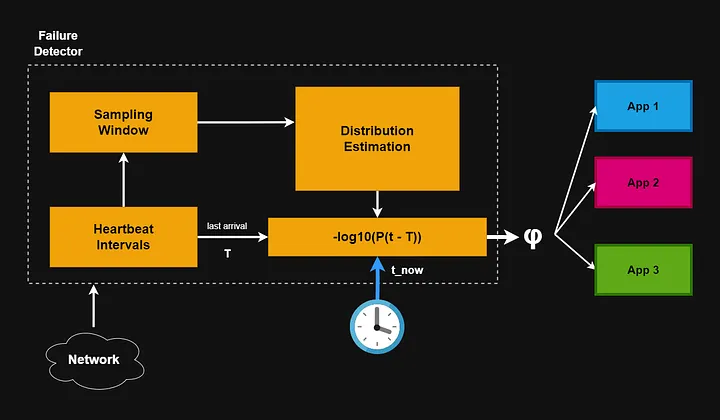

There are three phases in the method to calculate the Phi value.

1. This implementation utilizes a heartbeat mechanism to monitor other processes. Arrival times of the heartbeats are stored within a sampling window. This means that the detector maintains a fixed-sized internal buffer that holds the arrival times of heartbeats between the current time and a specified duration in the past. Whenever a heartbeat arrives, its arrival time is recorded in the window, and the data related to the oldest heartbeat is removed from the window.
2. These past samples are used to determine the distribution of inter-arrival times. That is time between two nearby heartbeats.
3. The distribution is in turn used to compute the current value of Phi.

Internally, the detector continuously maintains the sum and sum of squares of inter-arrival times in the sampling window to constantly determine the mean and variance. The estimation of the distribution of inter-arrival times assumes that inter-arrivals follow a normal distribution. The parameters of the distribution are estimated from the sampling window, by determining the mean and variance of the samples. Then the probability P_later(t) is given by following formula:

F(t) is the cumulative distribution function of a normal distribution above mentioned mean and variance. Then the value is Phi is calculated by applying equation described above.

The value of Phi increases when the period since the last heartbeat gets lost. If the monitored process is faulty, then the interval between heartbeats will increase, resulting in an increasing value of Phi following the properties one and two of the accrual failure detector.

Also, if the network becomes low and unreliable, the resulting mean and variance increase, thus needing longer period for which no heartbeat is received before the process is suspected by dynamically adapting to the network conditions.

The following chart illustrates how phi increases with increasing time since the previous heartbeat.

If the monitored process is correct, then inter-heartbeat arrival times will be constant resulting in a zero or very low variance. Hence, according to the distribution and formula, the computed Phi value will be low according to the last two properties of the accrual failure detectors.

Summary

The Phi Accrual Failure Detector, introduced by Naohiro Hayashibara in 2004, is a highly adaptive mechanism for failure detection in distributed systems. Unlike conventional failure detectors, it calculates a dynamic suspicion value, Phi, that reflects the probability of a process failure based on heartbeat arrival times and network conditions. Phi is computed using a statistical model derived from recent heartbeat inter-arrival times, assuming a normal distribution to estimate mean and variance.

By dynamically adjusting to network delays and failures, the Phi value increases as the time since the last heartbeat grows, indicating a higher likelihood of process failure. This adaptiveness ensures reliability even in unpredictable network conditions, allowing distributed applications to tune their failure thresholds based on specific requirements, thereby improving fault tolerance and responsiveness.

Reference

1. Hayashibara, Naohiro & Défago, Xavier & Yared, Rami & Katayama, Takuya. (2004). The φ accrual failure detector. 10.1109/RELDIS.2004.1353004.
